Project story

The father-in-law special

Storage shelves from 1×4s, half-inch ply, and a box of screws — the design my father-in-law has been handing out for years, now parametric.

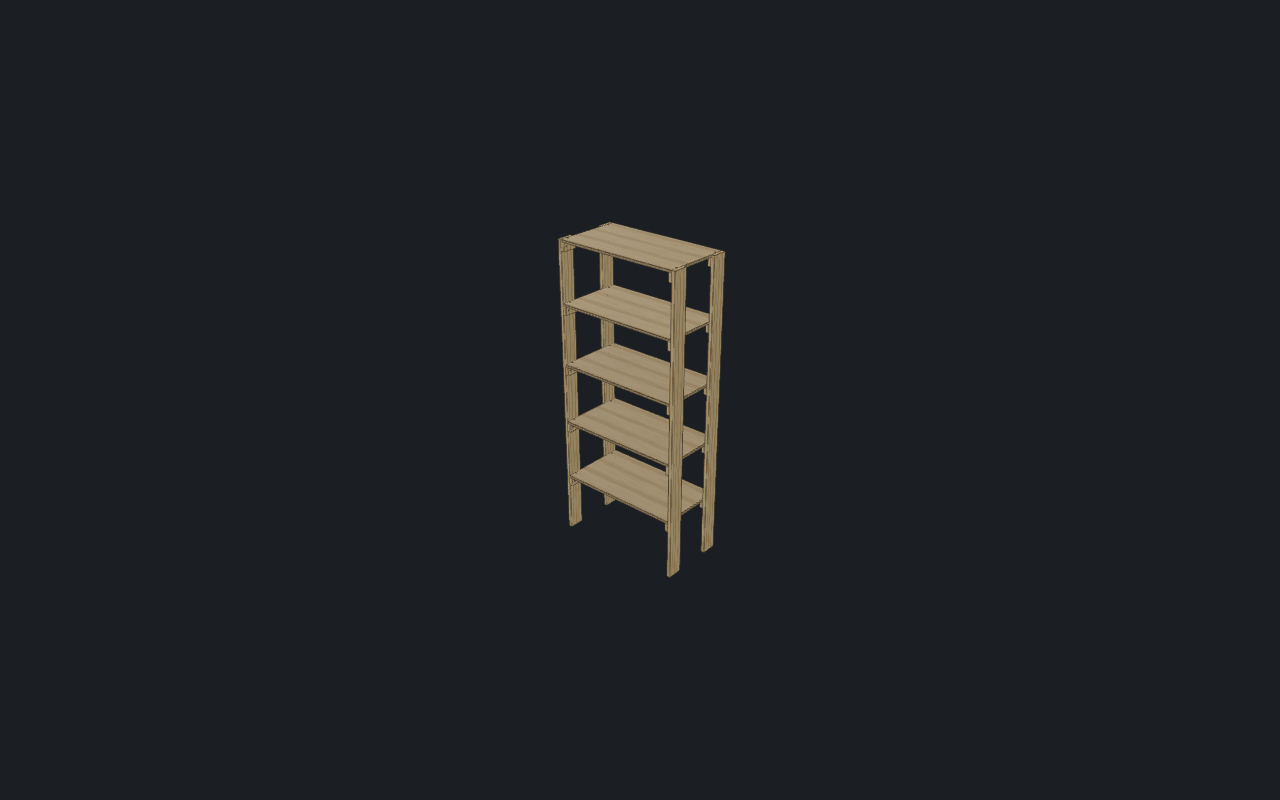

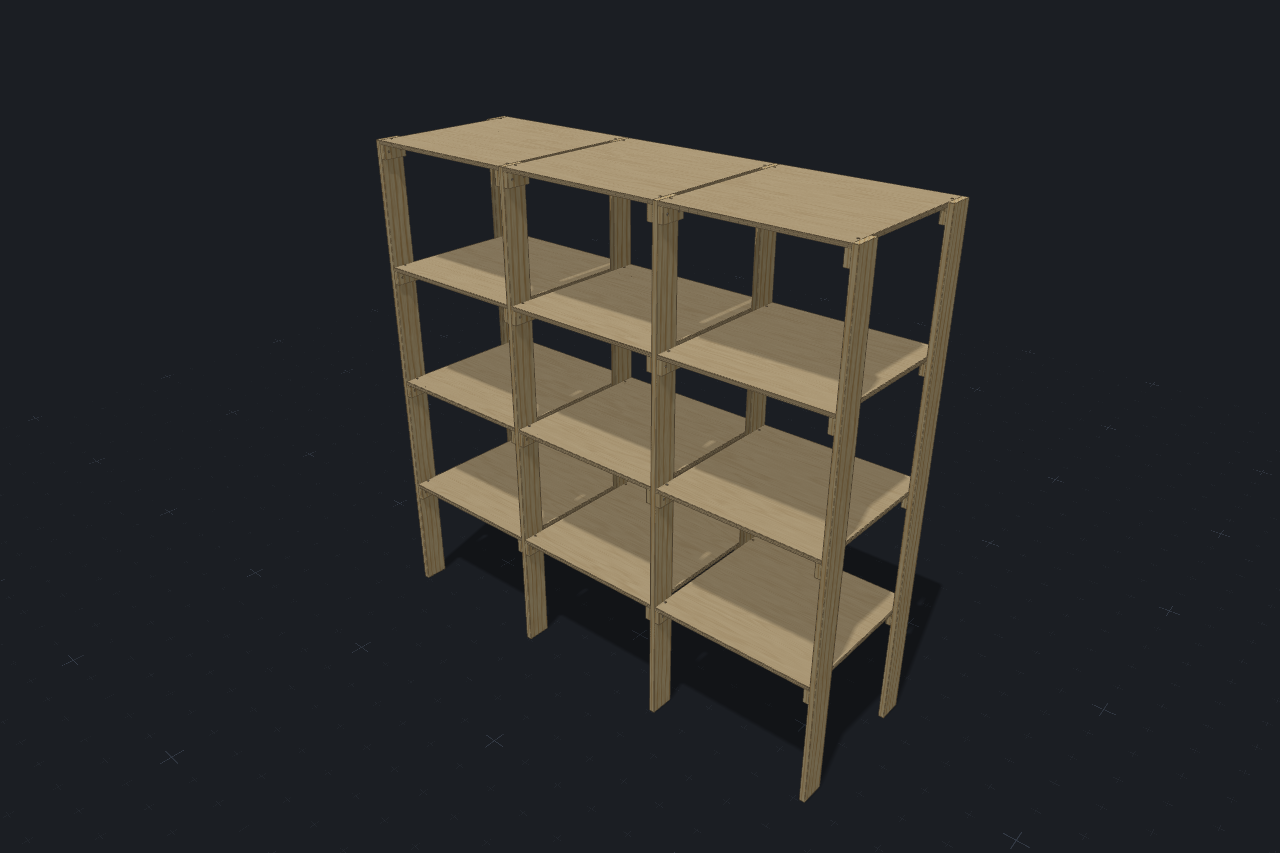

Storage Shelves, finished
drag to orbit

Every family has one project that gets passed around like a recipe. In mine it's these storage shelves. My father-in-law has been building them for decades — garage, basement, cold room — and when I finally asked how, the whole plan fit in one breath: four posts, some scraps, ply shelves, screws.

No jigs, no glue-ups, no joinery you'd need to practice first. A drill and a saw. What I didn't appreciate until I modeled it is how much quiet cleverness hides in that one breath.

The structure is made of scrap

Each post is a six-foot cut from an eight-foot 1×4. That leaves two feet of "waste" per board — and the design spends exactly that waste as its structure. The leftover gets chopped into 2-inch blocks, and those blocks are the standoffs every shelf rests on. The cut list eats the whole board.

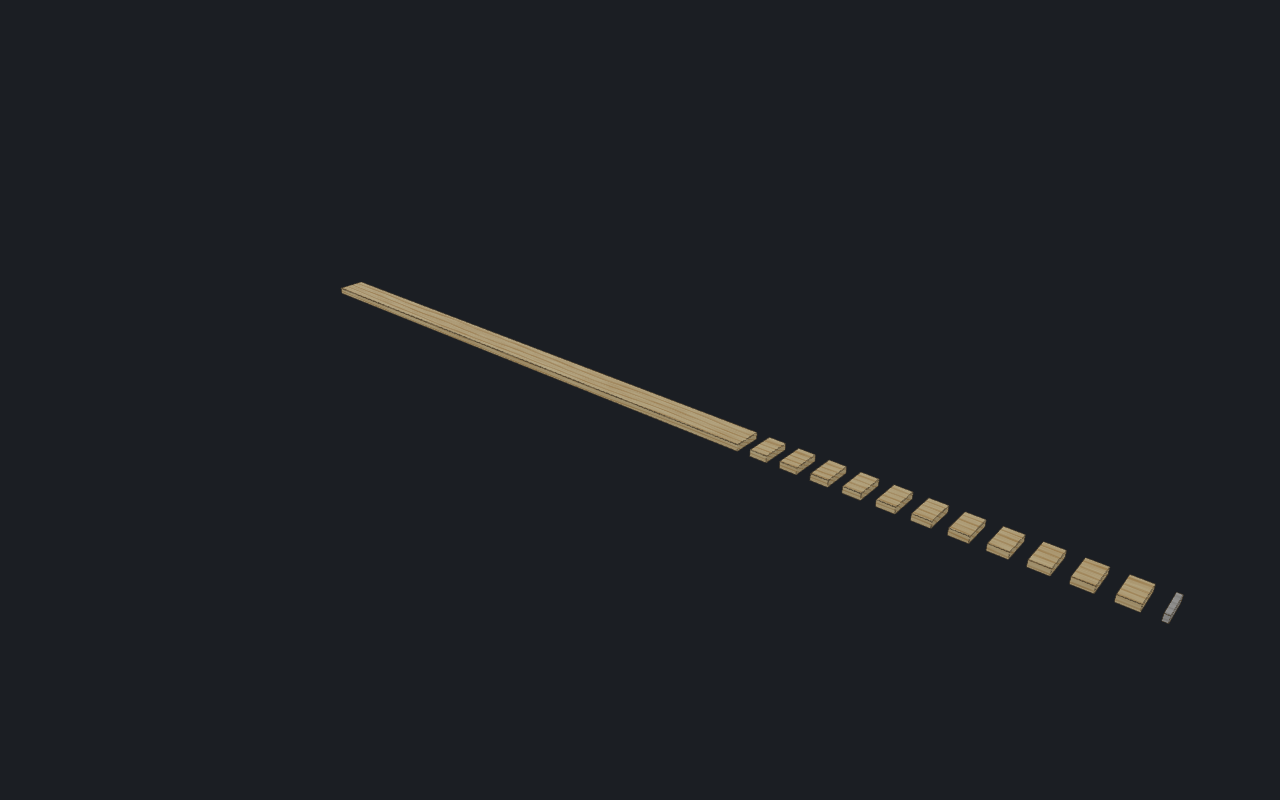

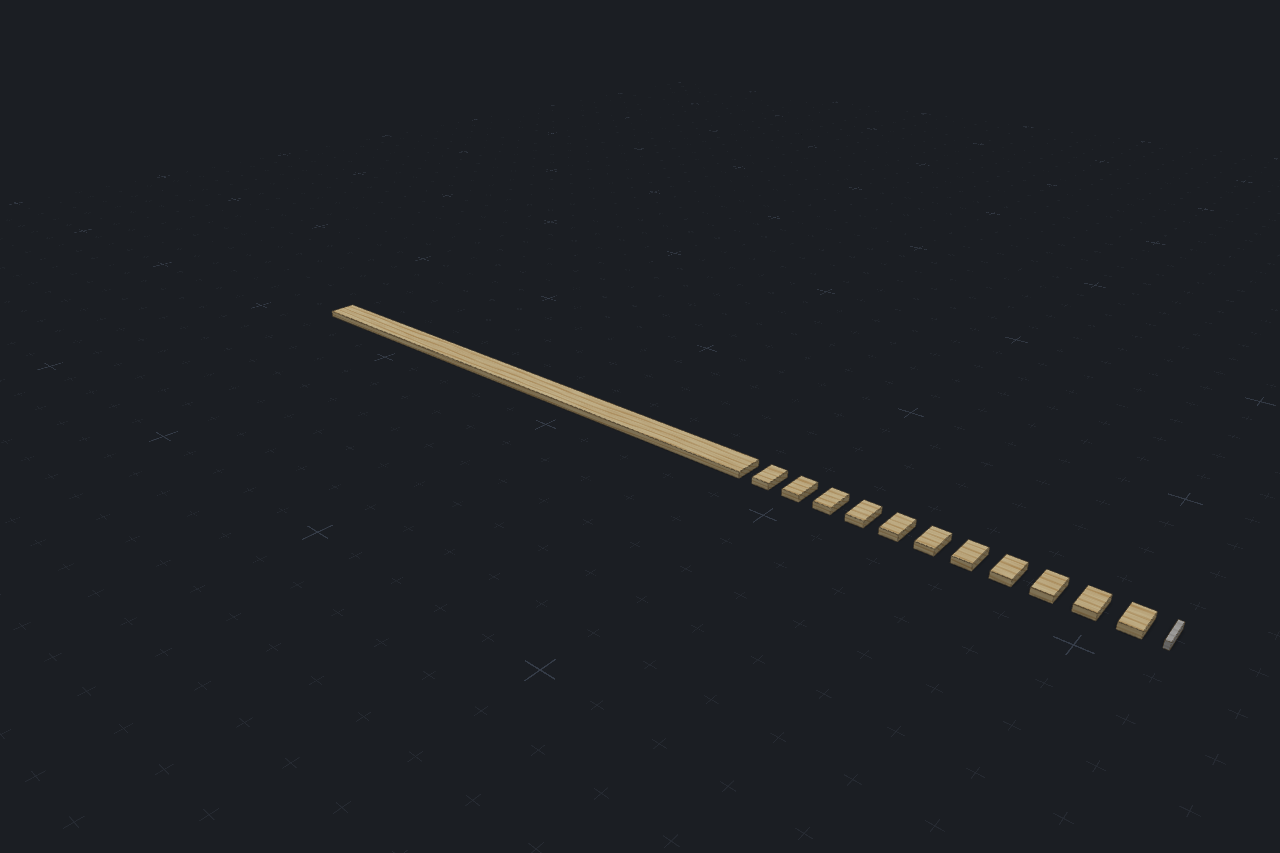

One board in: a post, and the tail chopped into standoffs. Nothing left but sawdust.
drag to orbit
Fig 1One board in: a post, and the tail chopped into standoffs. Nothing left but sawdust.

A joint you can't get wrong

There's no dado, no mortise, nothing that punishes a wandering saw. A standoff gets two countersunk screws into a post — that's the whole joint. The shelf sits on top of the standoffs and screws down into them. Every fastener drives straight and square, and if you botch one, you back it out and try again two inches over.

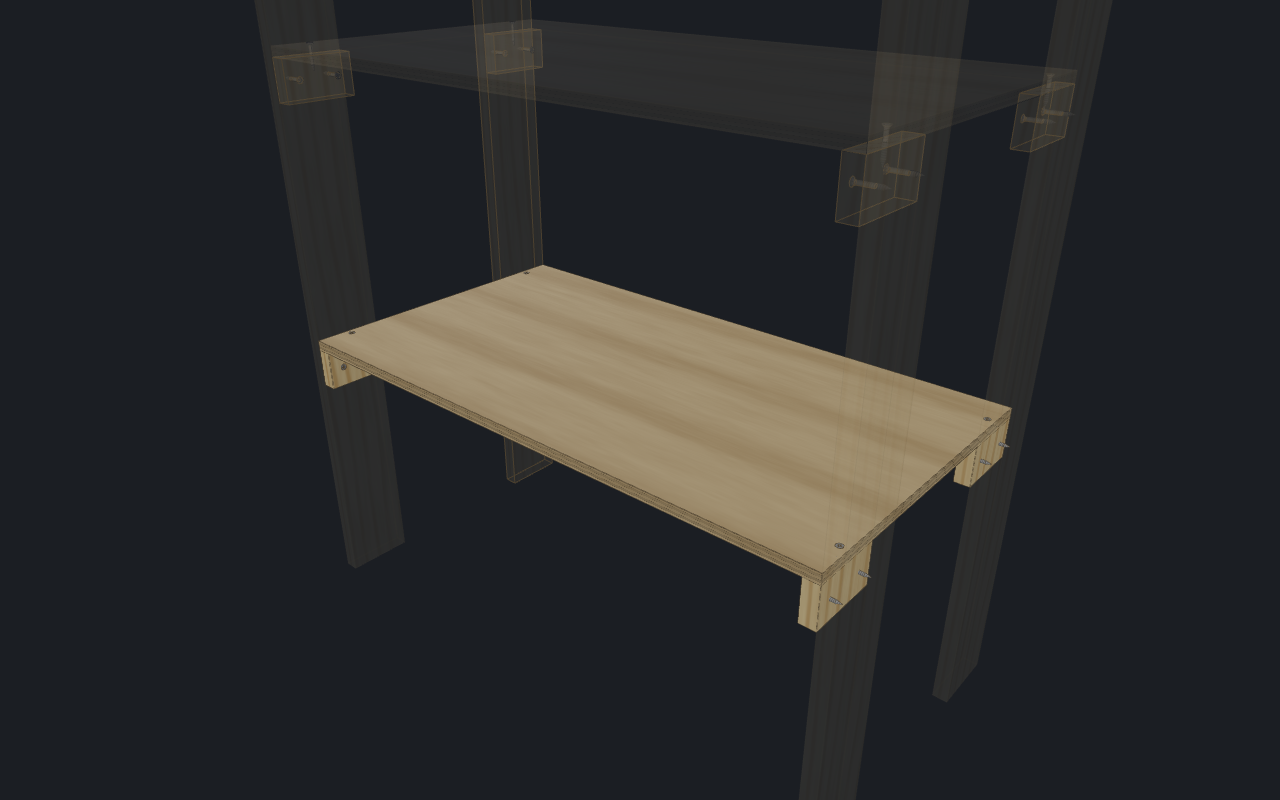

The bottom shelf: standoffs screwed to ghosted posts, ply screwed to the standoffs.
drag to orbit
Fig 2The bottom shelf: standoffs screwed to ghosted posts, ply screwed to the standoffs.

The 2-inch block also answers a question most shelf designs dodge: where does the shelf's weight actually go? Here it goes through the standoff's face grain into two screws in shear — the strongest boring answer available.

It grows sideways

The part I find genuinely elegant: adding a second column of shelves doesn't take four more posts. It takes two. Neighboring columns share the pair between them — the shared posts just carry standoffs on both faces. Every column after the first is two posts, a stack of offcut blocks, and some ply.

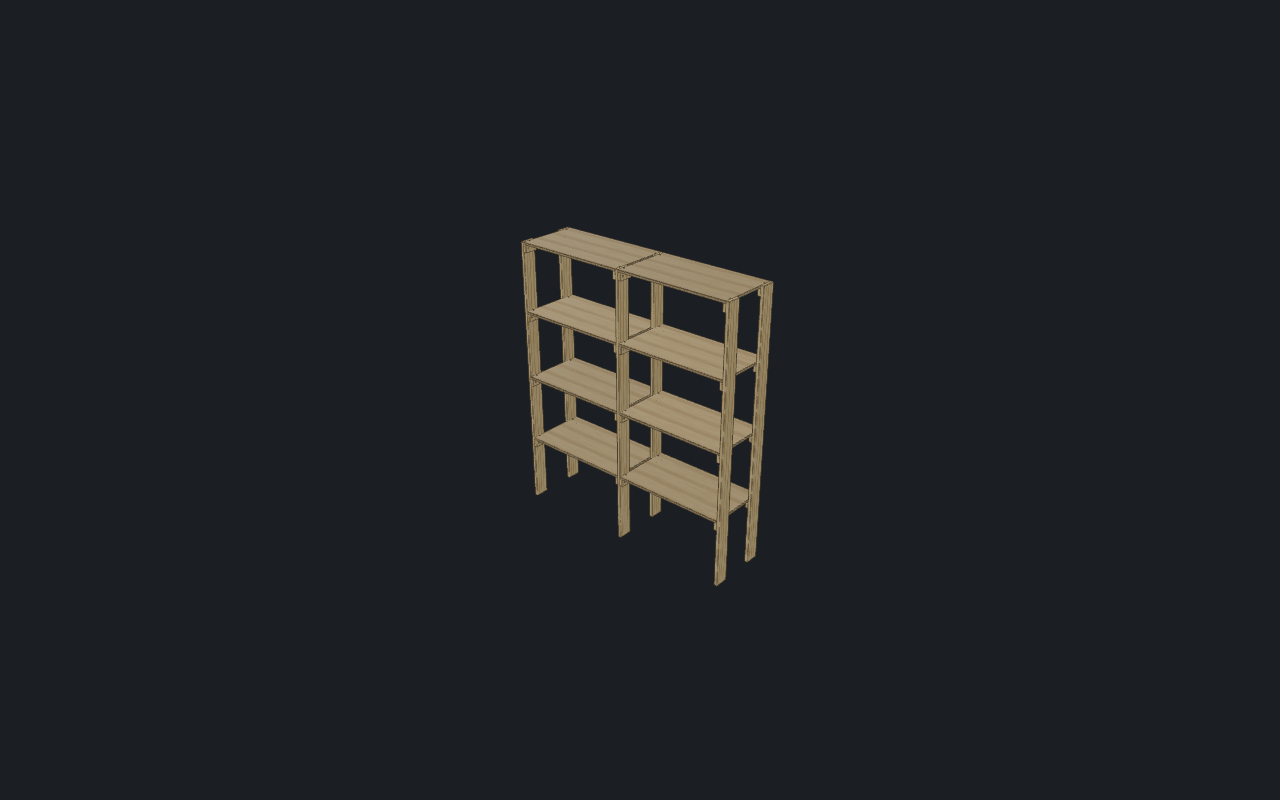

Two columns, six posts. The middle pair works double shifts.
drag to orbit
Fig 3Two columns, six posts. The middle pair works double shifts.

Make it yours

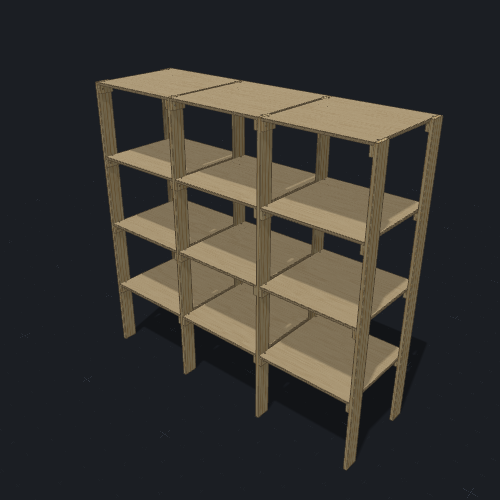

Mine is six feet tall with five shelves. Yours doesn't have to be — the plan regenerates for whatever height, depth, and shelf count your wall wants, and the cut list, screw count, and step-by-step build come out matched to it.

The plan, matched to you
